SPECIFICATIONS

AC power cable length: 1M

Brand Name: KingMa

Certification: CE,FCC,RoHS,UL

Choice: yes

Compatible Brand: For Lenovo,ThinkPad

Compatible with P/N: GX21F23045 adl300sdc3a sa10r16956, adl300slc3a sa10r16957 5a10w86289

Compatible with laptop models: Lenovo Legion 5 7 5P C7 S7 Y540 Y545 Y740 Y730 Y900 Y910 Y920 Y7000 Y7000p, Thinkpad P53 P52 P51 P50 P73 P72 P71 P70 P15 P16 P17 T15g,for Lenovo IdeaPad Pro 5/5i RTX 3050 3060 3070 4060 4070 4080 4090 Series,for Lenovo Legion Pro 7i / Lenovo Legion Pro 7 RTX 3050 3060 3070 RTX 4070 Series,for Lenovo IdeaPad Pro 5/5i Gen 8 16-inch models Series

Connector Type: Yellow Square Tip 11mm x 4.5mm

High-concerned chemical: none

Item Type: Power Adapter

Item Weight: 1.21 pounds

Max Wattage: 330W

Model Number: GS-330W-AC

Origin: Mainland China

Output Current: 16.5A

Output Voltage: 20V

Package: Yes

Package Dimensions: 6.85 x 4.33 x 3.94 inches

Part Number: 7182004601

Plug Type: Type-C

XT cable: 1.5M

semi_Choice: yes

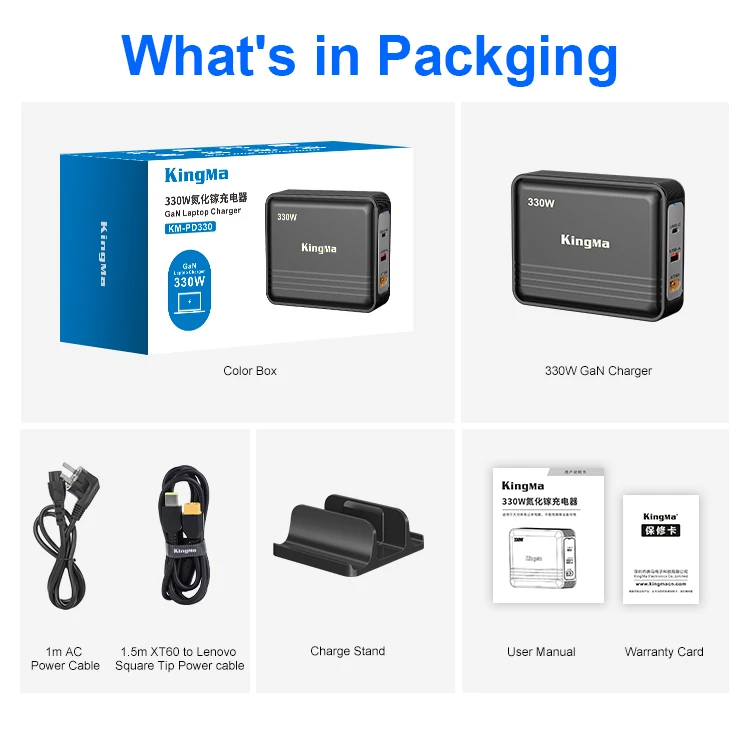

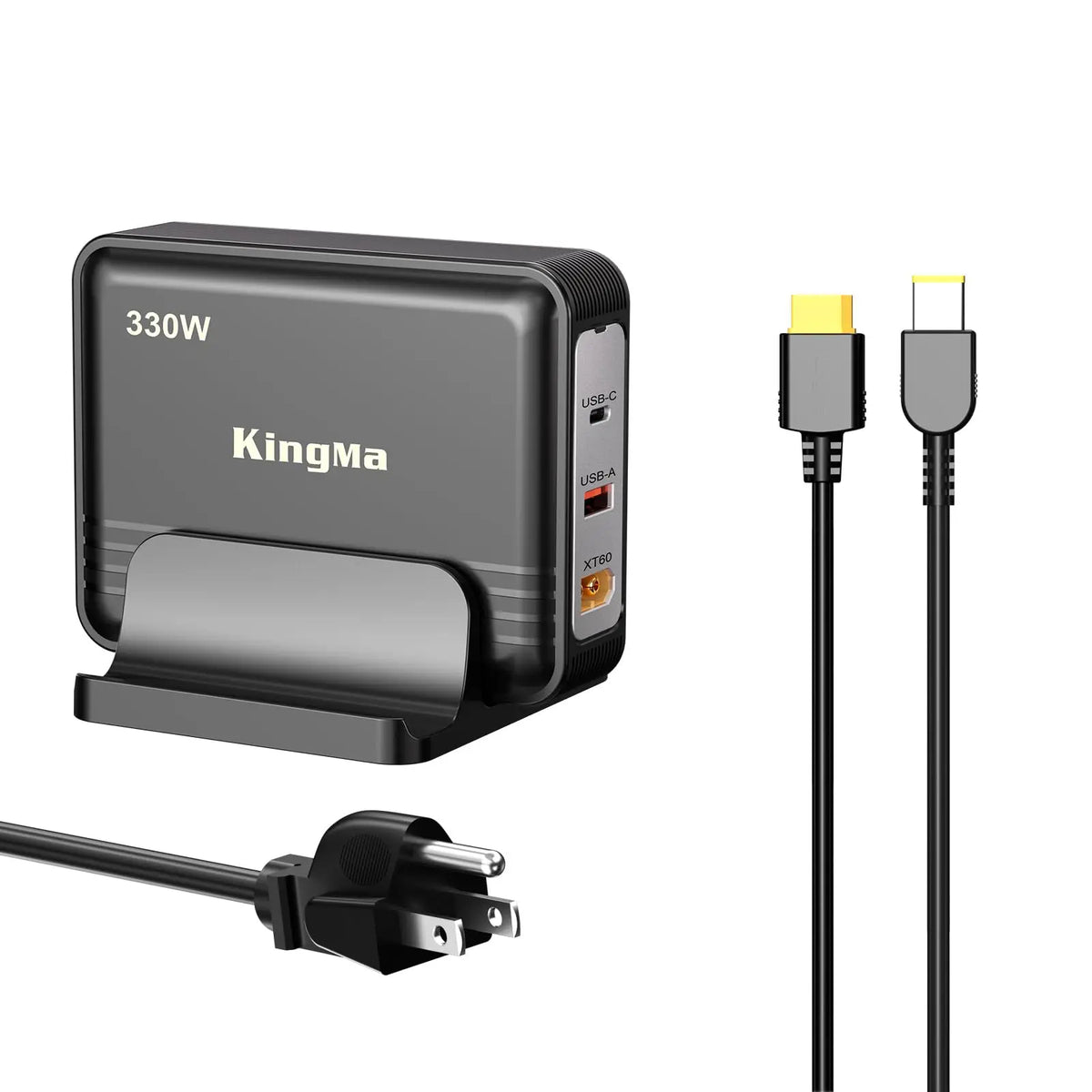

𝗪𝗵𝗮𝘁 𝘆𝗼𝘂 𝗴𝗲𝘁:

1 x 330W GaN Charge

1 x AC Power Cable

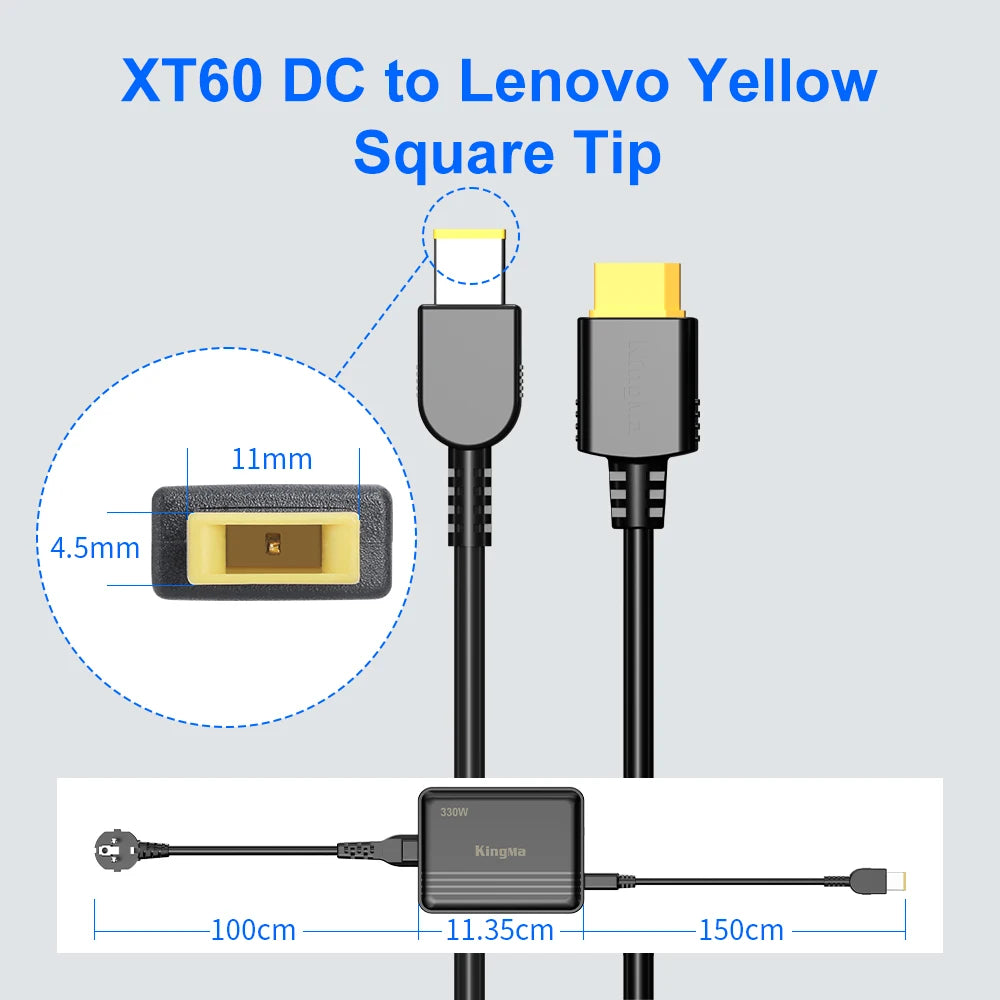

1 x XT60 to Yellow Square Tip Power Cable (Compatible with Lenovo Legion)

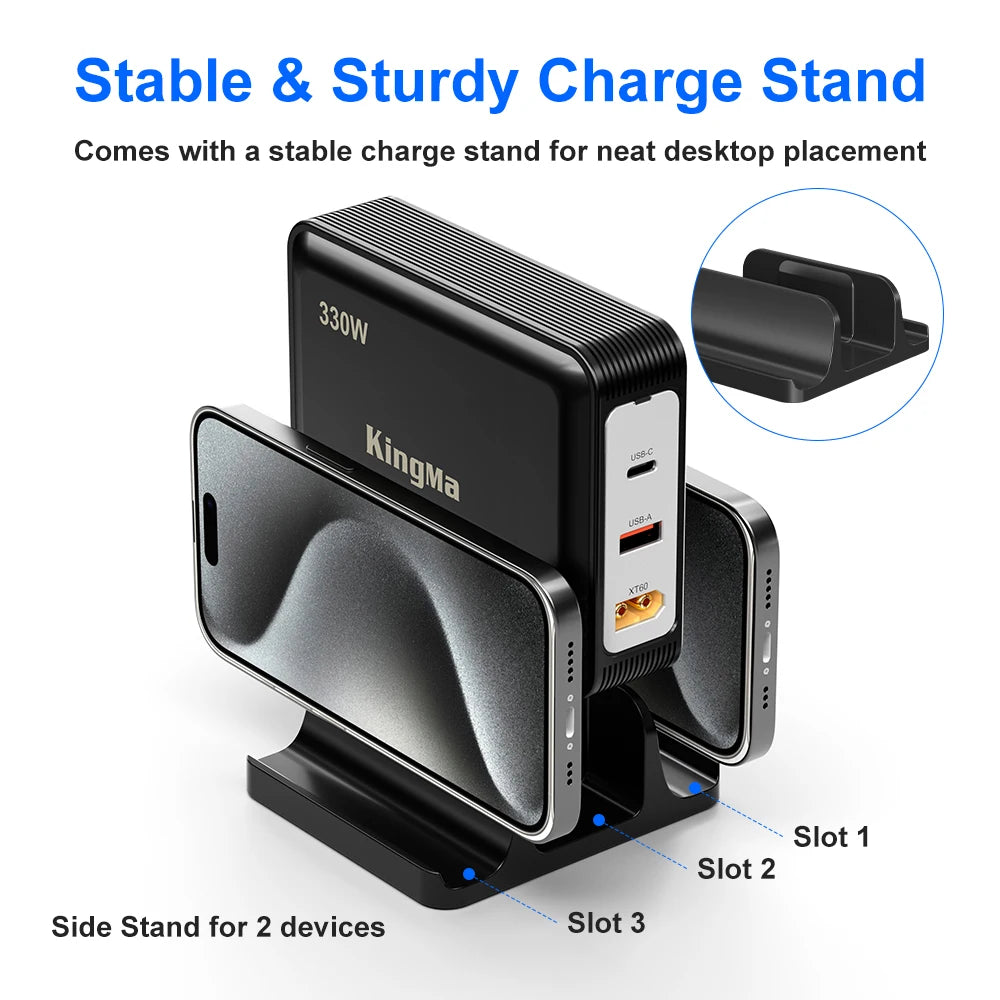

1 x Charge Stand

Please note: Laptops, phones and tablets are not included in the box.

About this item

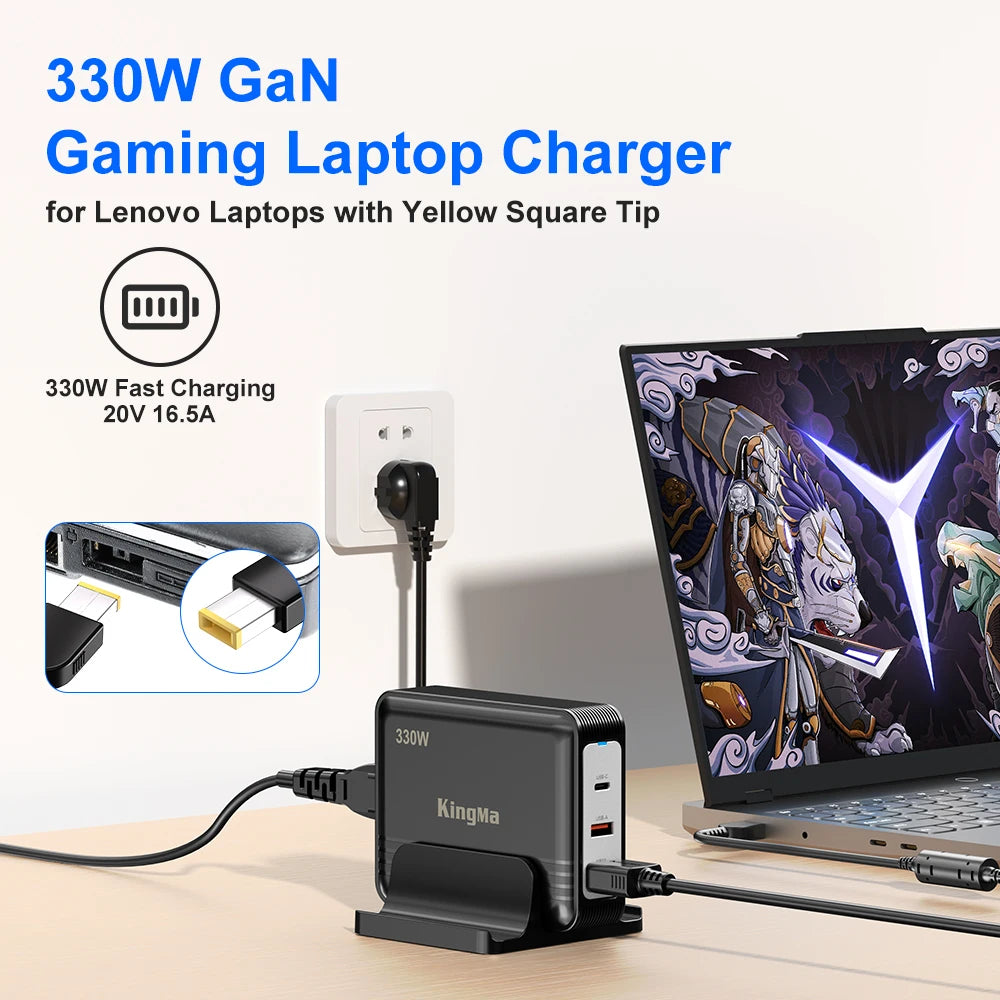

𝐁𝐮𝐲𝐢𝐧𝐠 𝐆𝐮𝐢𝐝𝐞❗ Ideal for all laptops up to 330W, when paired with the correct DC adapter. Lenovo laptop power charging ports are typically Rectangle Slim Tip (11mm x 4.5mm), depending on your original charger size. Please visit our store to choose the right DC adapter.

【𝟯𝗶𝗻𝟭 𝗠𝘂𝗹𝘁𝗶-𝗳𝘂𝗻𝗰𝘁𝗶𝗼𝗻】

Input AC: (110V-240V-50/60Hz, 5A)

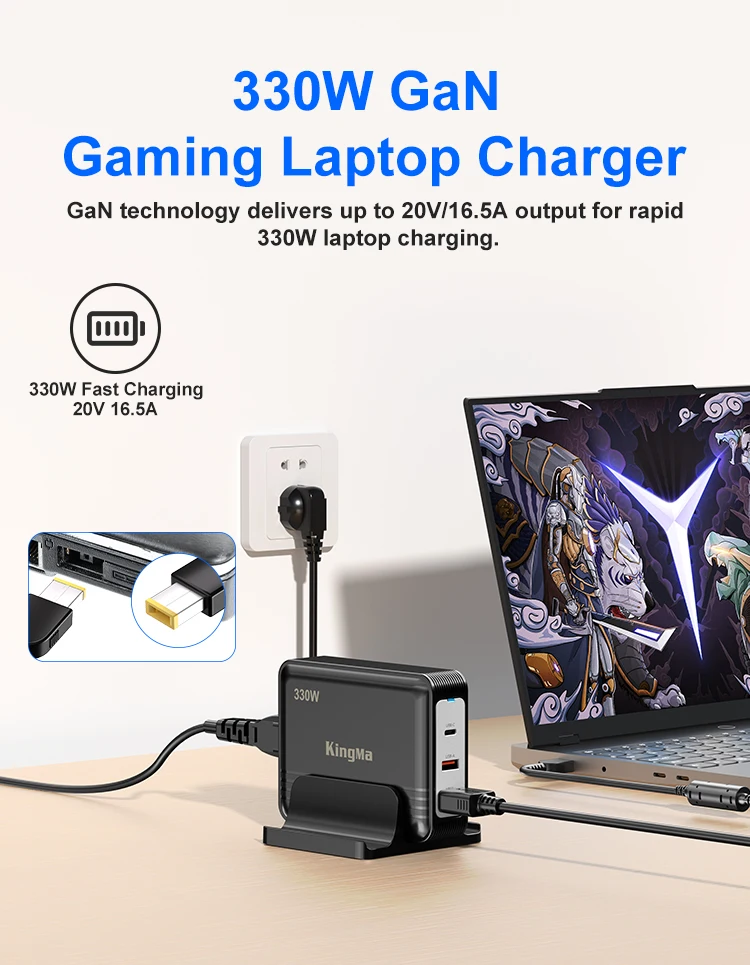

Output DC: (Max 330W 20V⎓16.5A)

DC and 1 Type-C and 1 USB-A. 3 ports share 330 Watt voltage

【𝗦𝗺𝗮𝗹𝗹𝗲𝗿 𝗮𝗻𝗱 𝗟𝗶𝗴𝗵𝘁𝗲𝗿】

The King Ma KM-PD330 is up to 50% smaller and lighter than other laptop chargers in the same power category. Size 3.40 x 1.28 x 4.47 in. (WxHxL)/86.5 x 32.5 x 113.5 mm. With only 17.46 oz. / 490g in weight. Small and light enough to take with you wherever you go. We have equipped you with a desktop stand that can hold this charger and can be used as a mobile phone stand. It is the best choice for business trips.

【Single-port output power】

XT60 port single output: 20V/16.5A (Max330W).（1. Downward compatible voltage 19V-20V, current 16.5A-0.5A, It can be used. 2. The original charger output voltage is lower than 19V, common 15V,12V can not be used. There is a risk of burning out the equipment if used incorrectly）

USB-A port single output: 4.5V5A, 5V4.5A,5V3A, 9V3A, 12V3A, 20V3A (Max 60W)

TYPE-C port single output: 5V3A, 9V3A,12V3A, 15V3A, 20V5A (Max 100W)

【3 ports support agreements】

XT60 port does not support any protocol output, and is an exclusive fixed voltage 20V output.

USB-A port supports output protocols: 2.4A, 5V-2A, QC3.0, QC2.0 , AFC, FCP, SCP, MTK PE+2.0

Type-C port supports output protocols: PD3.0, PPS, 2.4A, 5V-2A, QC3.0, QC2.0, AFC, FCP, SCP, MTK PE+2.0.1

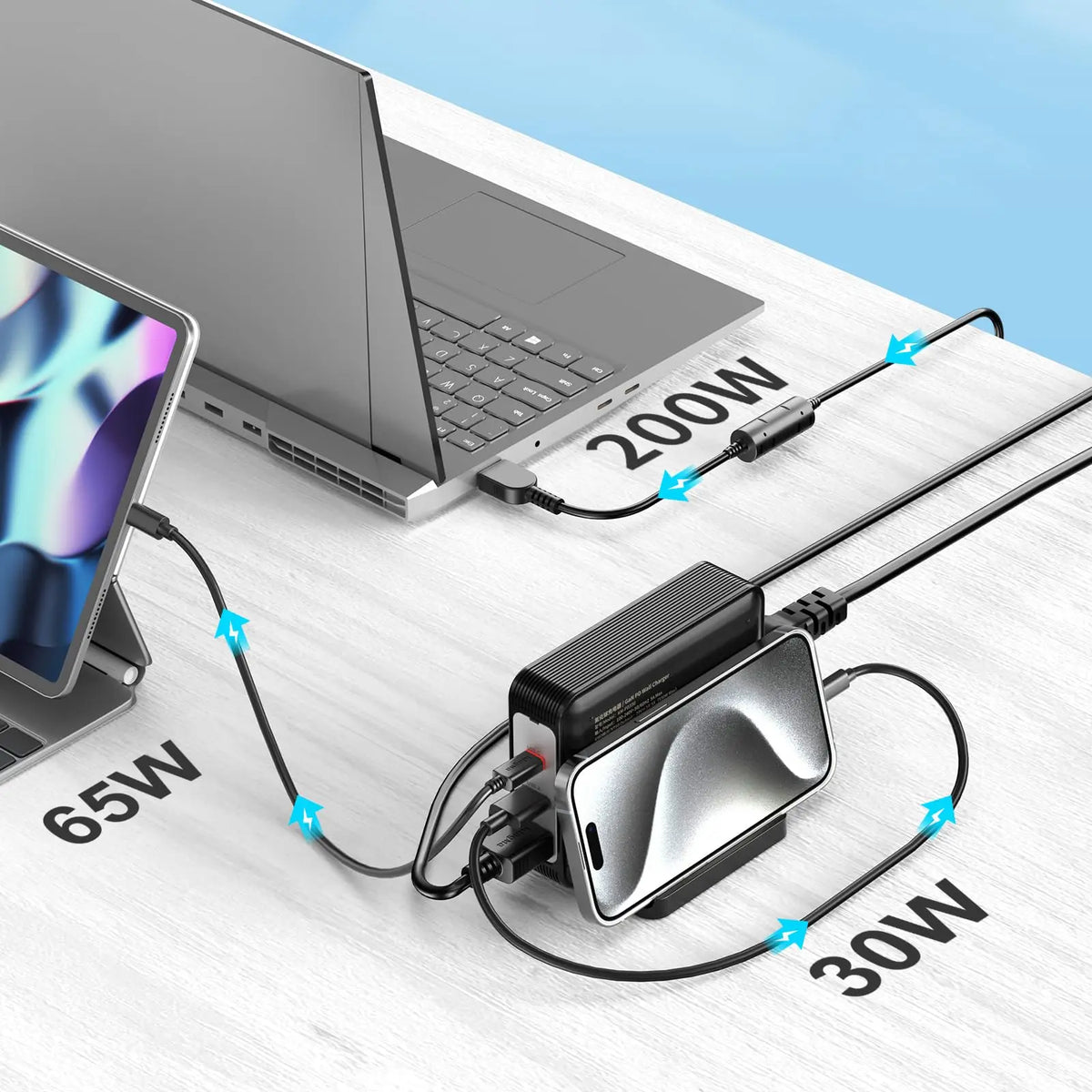

Type-C port and 1USB-A port, That Can charging Laptops(Type-C 65W), Tablets, Phones, portable gaming device and power bank, etc.

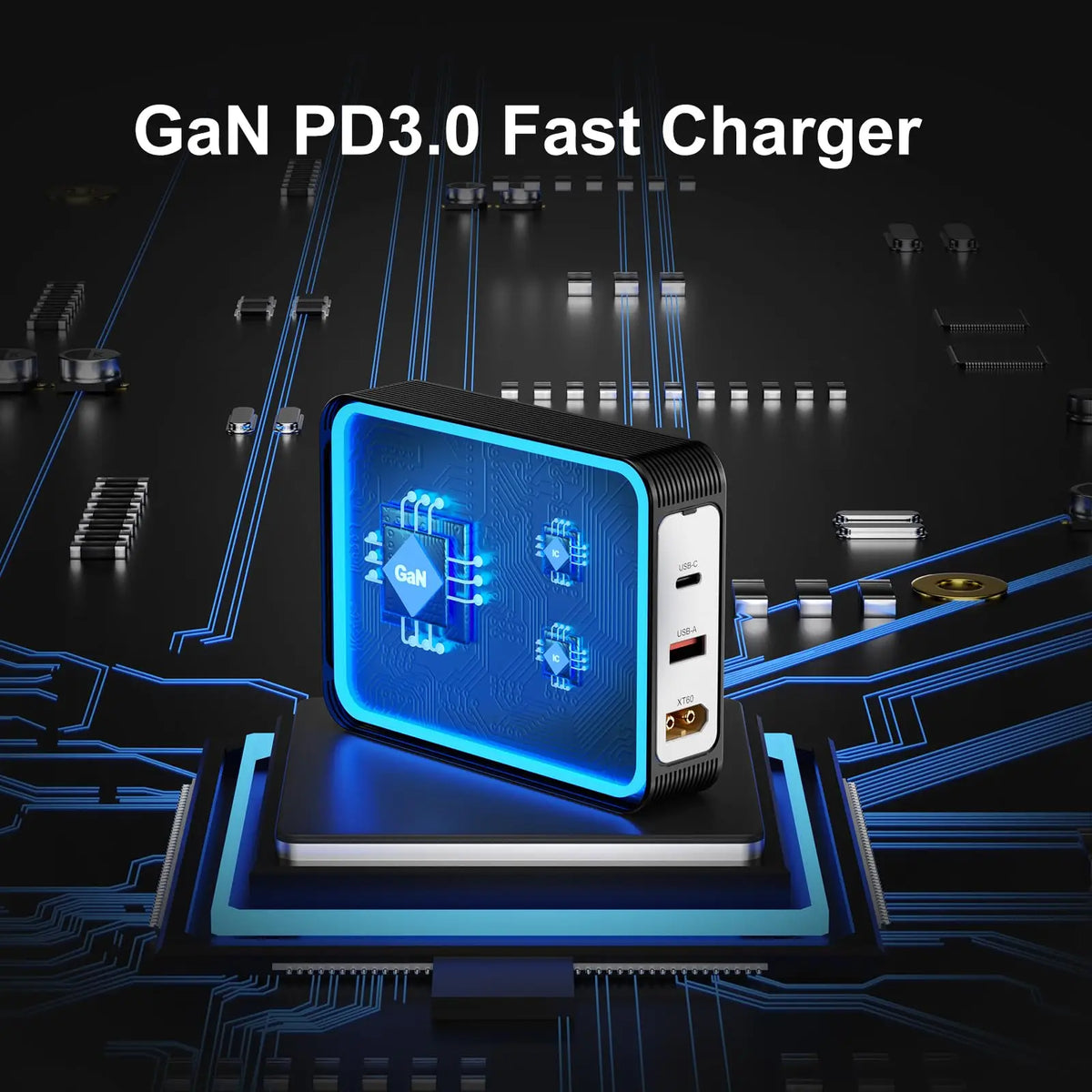

【Latest GAN Chip Technology】

Powered by GaN technology, the most efficient architecture design and advanced bridgeless topology, the efficiency is as high as 96.7% (220V) and 95.5% (110V), which is smaller in size and with higher & efficient charging power, low temperature, and tolerates higher current compared to traditional silicon-based approaches.

✅【Compatible Models】

✔ For Lenovo Legion Pro 7i RTX Series
with 3050 / 3060 / 3070 / 4070 GPUs

✔ For Lenovo Legion 7 Series
16ACHg6 / 16ITHg6 / 16ARHA7 / 16IAX7 / 16IRX8

✔ For Lenovo Legion 5 & 5 Pro Series
16IRX9 / 15ACH6H / 15ACH6A / 15ARH7H / 15IAH7H / 15ITH6H / 17ACH6H / 17ITH6H

✔ For Lenovo Yoga Series
Yoga AIO 7 27ACH6

✔ For Lenovo ThinkPad Series
P73 / P72 / P71 / P70 / P53 / P52 / P51 / P50 /
Y740 / Y545 / Y540 / Y9000P / Y9000K / R9000P / R9000K / Y9000X / Y9000P / Y7000P

✔ For Lenovo C7/S7 Series
C7-15IMH05 / S7-15ACH6 (82K8) / S7-15ARH5 (82HM) / S7-15IMH5 (82BC)

✔ Compatible with Lenovo P/N:
ADL300SDC3A / ADL300SLC3A / SA10R16956 / 5A10W86289 / 5A10W86290 / SA10R16957

---

📌 Note: More models are supported but not listed here. Please contact our customer service to confirm compatibility before purchasing.
